2014 Peterbilt 388 with Jerr-Dan HDR1000 50/60 Rotator

Stock Number U3457

Description

Truck Equipment and Options

  • 2014 Peterbilt 388
  • Stock Number U9457

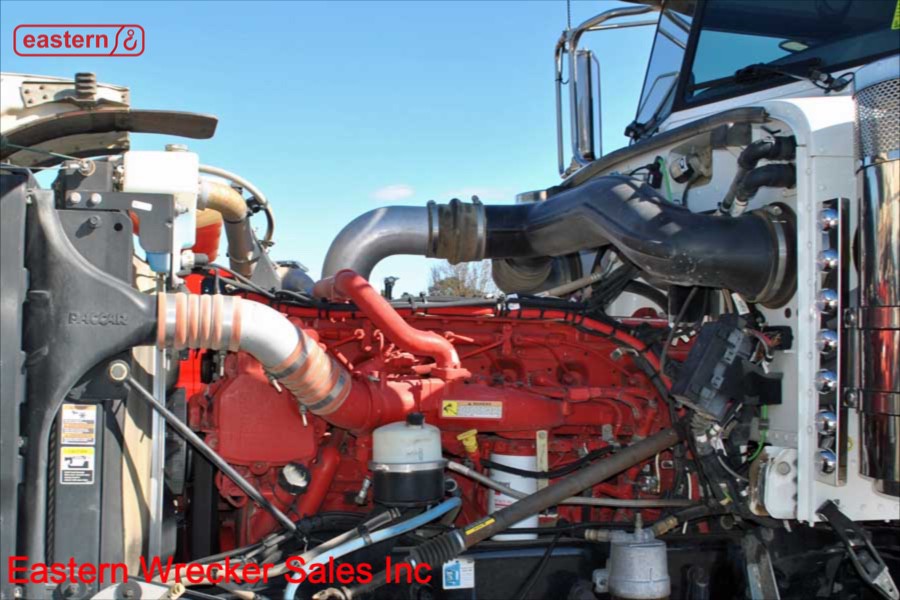

  • Cummins ISX15 – 600hp@1900
  • 18-spd Fuller RTLO18918B transmission
  • Dana Spicer 22,000lb front axle, taperleaf front springs, 23,000lb shocks
  • Dana Spicer 46,000lb rear, 46,000lb Peterbilt Air Trac
  • Watson-Chalin SL2055 self steering pusher axle – 20,000lb with lift switch & gauge on dash
  • 83,000lb GVWR
  • 11-5/8 steel frame rails, 2.568 RBM; 10-3/4×3/8 full steel rail liner
  • Inter-axle differential lock
  • Aluminum wheels
  • 425/65R22.5 tires – front
  • 425/65R22.5 tires – pusher
  • 12R24.5 tires – rear
  • 270amp alternator
  • 120 gallon aluminum fuel tank
  • Aluminum battery box
  • Aluminum cab, polished crown
  • Remote keyless entry
  • Platinum interior
  • 10inch extension – ultra day cab
  • Ultraride Peterbilt premium driver seat, leather, air ride
  • Ultraride Peterbilt premium passenger seat, leather, air ride
  • Burlwood dash; dome lights; courtesy lights
  • Cupholders; keyboard storage
  • Stainless steel motorized heated mirrors
  • 4 – Hadley chromed air horns
  • Unibilt air suspension for cab
  • SmartNav stereo with speaker system, satellite ready
  • Intermittent wipers
  • Power windows
  • Gauges with oil temp/ trans temp/ axle temp-tandem/ air pressure/air restriction indicator/ tachometer/ volts – some in gauges, some in Nav center

Body Equipment and Options

  • Jerr-Dan HDR1000 50/60 Rotator
  • Serial Number 0230001880
  • 3-Section High Strength 360° Continuous Rotation Hydraulic Boom
  • 100,000lb rating at 30° | 120,000lb rating at 60°
  • 41feet-5inches of boom extension | 42feet-8inches ground to hook max height
  • Dual 50,000lb Planetary main boom winches
  • Dual 20,000lb Planetary boom wing winches
  • 35,000lb Planetary underlift-mounted drag winch
  • UL565 Coach Option Underlift – 56,500lbs of lift at 76inches extension; 17,600lbs of lift at 185inches extension; 42inches of max tow height
  • 264inch Cab-to-Tandem Tri-Axle Body, JFB Body Series option
  • Air actuated slew locks (boom swing locks) front and rear
  • Wireless proportional remote control – all boom functions
  • 3-location multiplex electrical controls; 2-location multiplex air controls
  • High-strength steel “torque box” subframe engineering
  • Low profile scissor-style outriggers, 15inch ground penetration, driver and passenger side controls
  • Outrigger integrated folding spades; outrigger D-rings with manual locking pins
  • Telescoping rear stabilizers with integrated folding spades

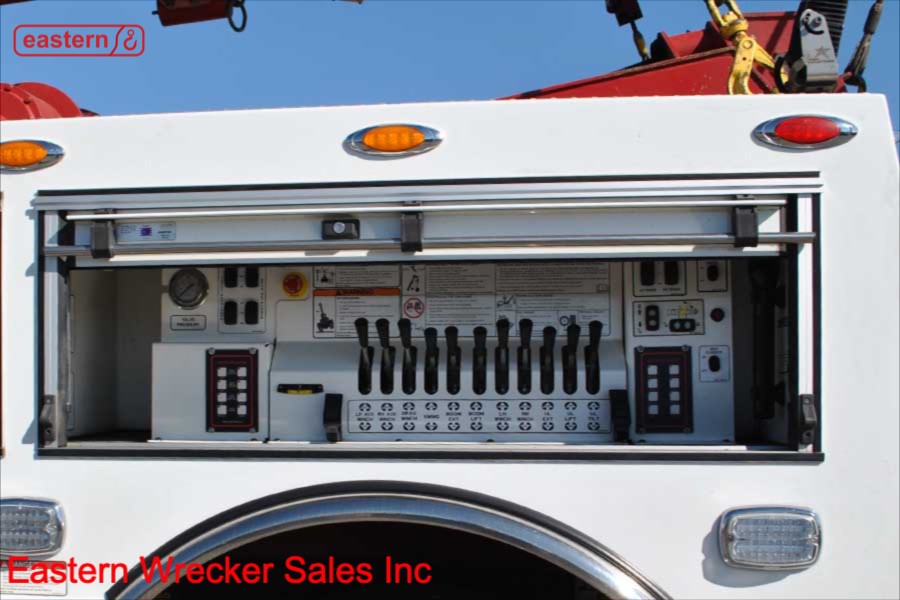

  • Driver and passenger side proportional manual controls
  • Driver and passenger side hydraulic pressure gauges
  • Independently rubber shock mounted body panels
  • Aluminum roll-up doors with painted finish
  • 26 additional LED side marker lights with JFB body package
  • LED amber main and auxiliary emergency light bars
  • LED amber side strobes; LED amber rear strobes; 4 additional with JFB body package
  • Upper and lower hookup lights; LED boom work light; upper work lights
  • Underlift and outrigger lights
